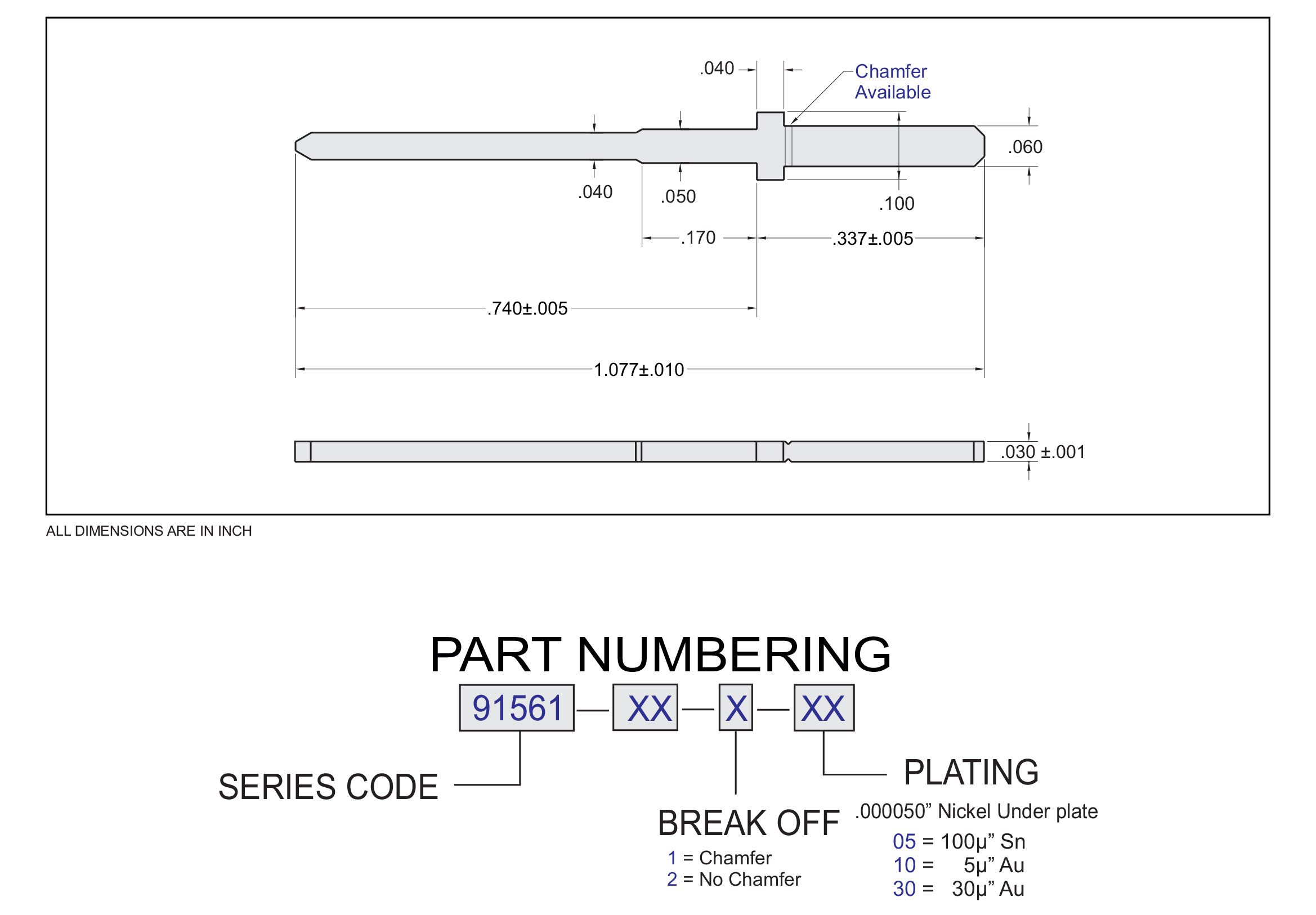

91561 Series Signal Pin .030" x .040"

ECS Catalog PDF Files Download


Contact Material: Phosphor Bronze Alloy CA510
Contact Plating: Gold or Tin over .000050” Nickel, and
Tin (See Plating Options)
Current Rating: 5 amps at 30°C
Contact Resistance: Compliant section to P.T.H.:
2 m ohms
Dielectric Withstand Voltage: 1800 V AC
Hole Size Requirements: Drilled Hole Dia.: .054”± .001”
Plating: 0.001” to 0.003” copper and
.0001” to .0008” solder.
Finished Hole Diameter: .050” to .053”
UL File Numbers: E146967 & E176234



For drawings, technical data or samples,
contact E.C.S. at 714/750-9410
