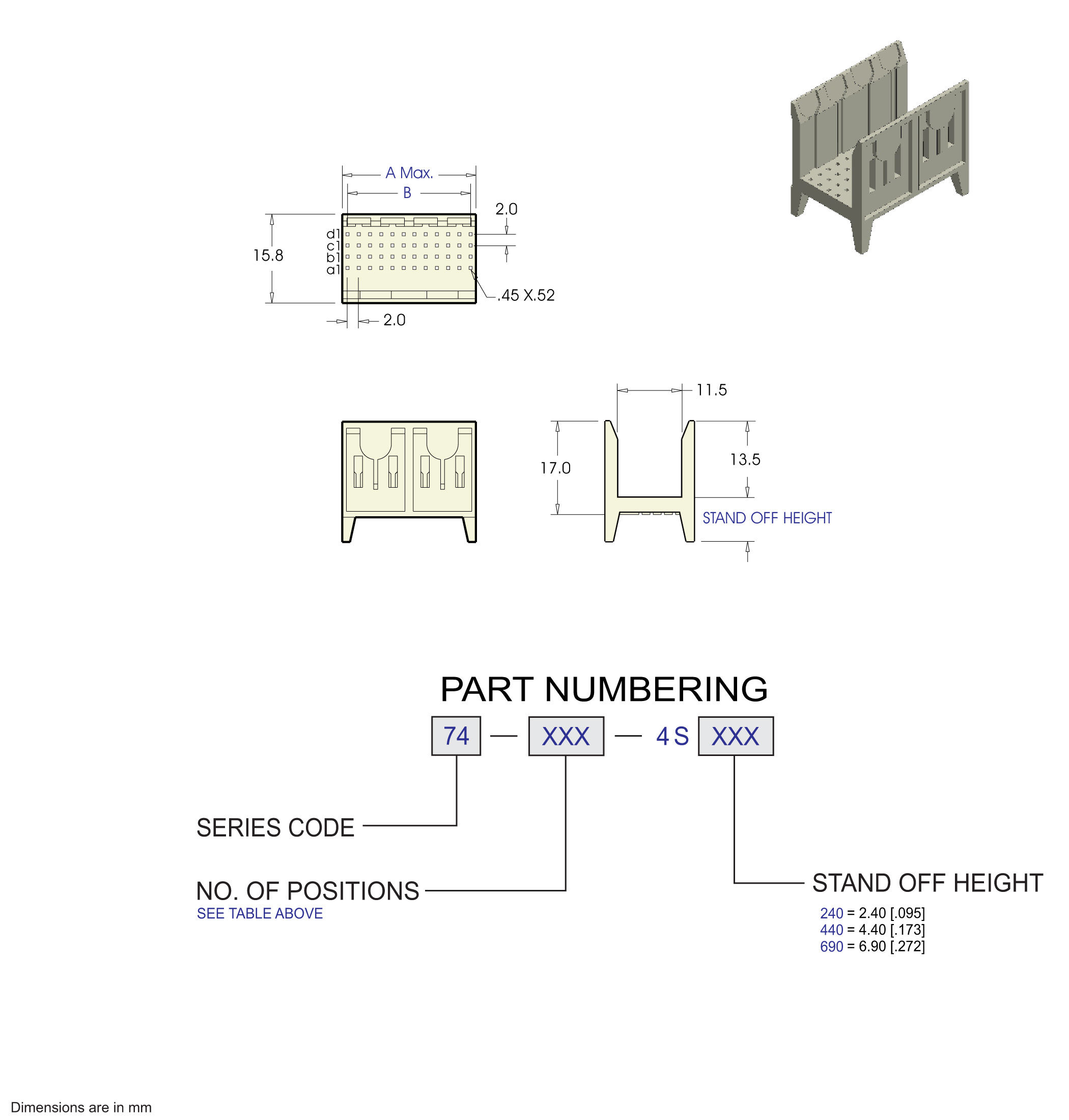

| Contact | Dim A | Dim B |
|---|---|---|
| 24 | 11.95 | 10.00 |
| 48 | 23.95 | 22.00 |
| 72 | 35.95 | 34.00 |
| 96 | 47.95 | 46.00 |
| 120 | 59.95 | 58.00 |
| 144 | 71.95 | 70.00 |
| 168 | 83.95 | 82.00 |
| 192 | 95.95 | 94.00 |
Specifications
1. Insulator Material: Liquid Crystal Polymer (LCP) 94V-O, UL Recognized.
2. Insulation Resistance: 1000 M ohms min.
3. Dielectric Withstand Voltage: 1000 VAC
4. Operating Temperature: -55°C To +125°C
5. UL File Numbers: E 176234, IEEE 896.10 FutureBus+
