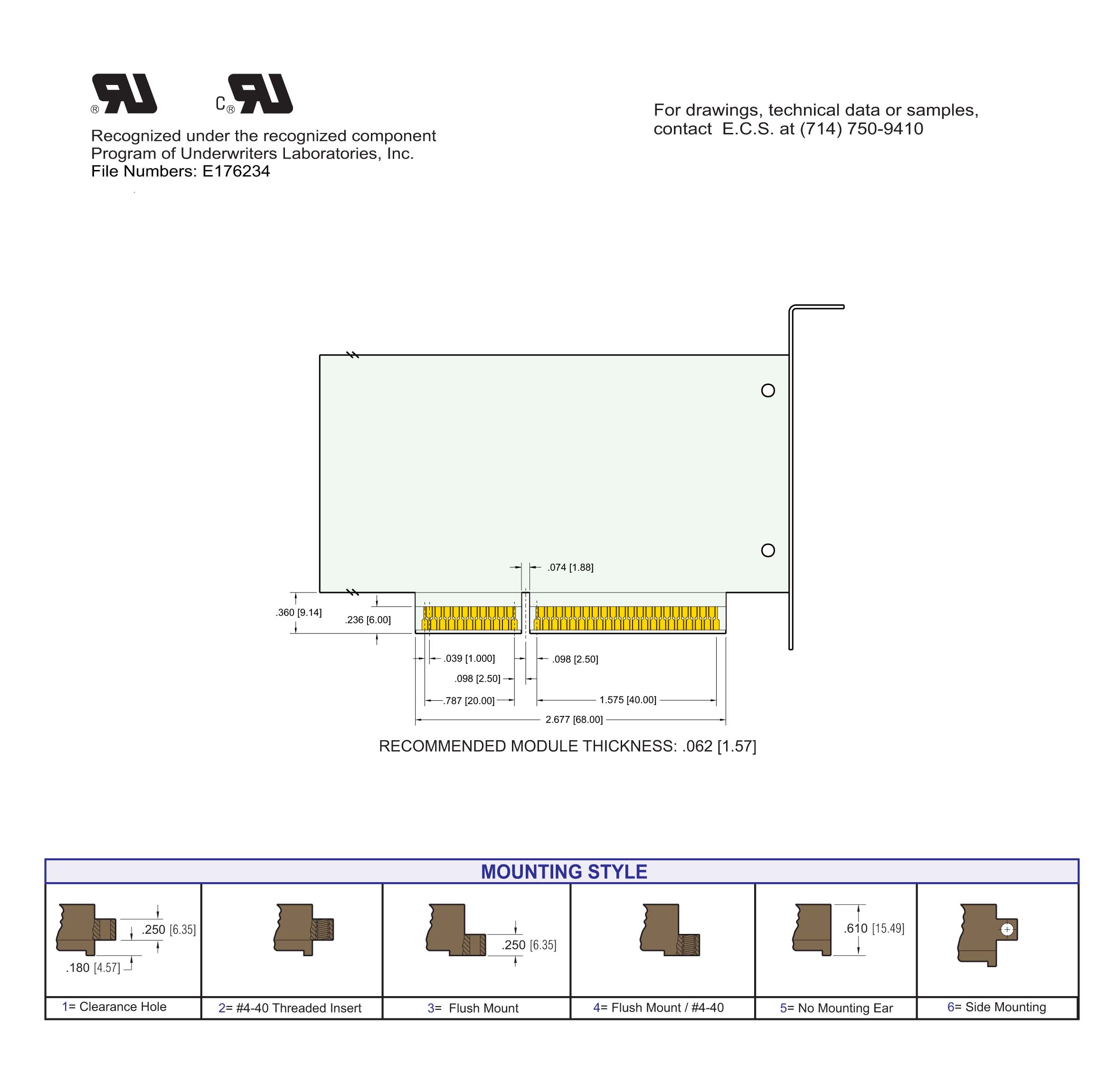

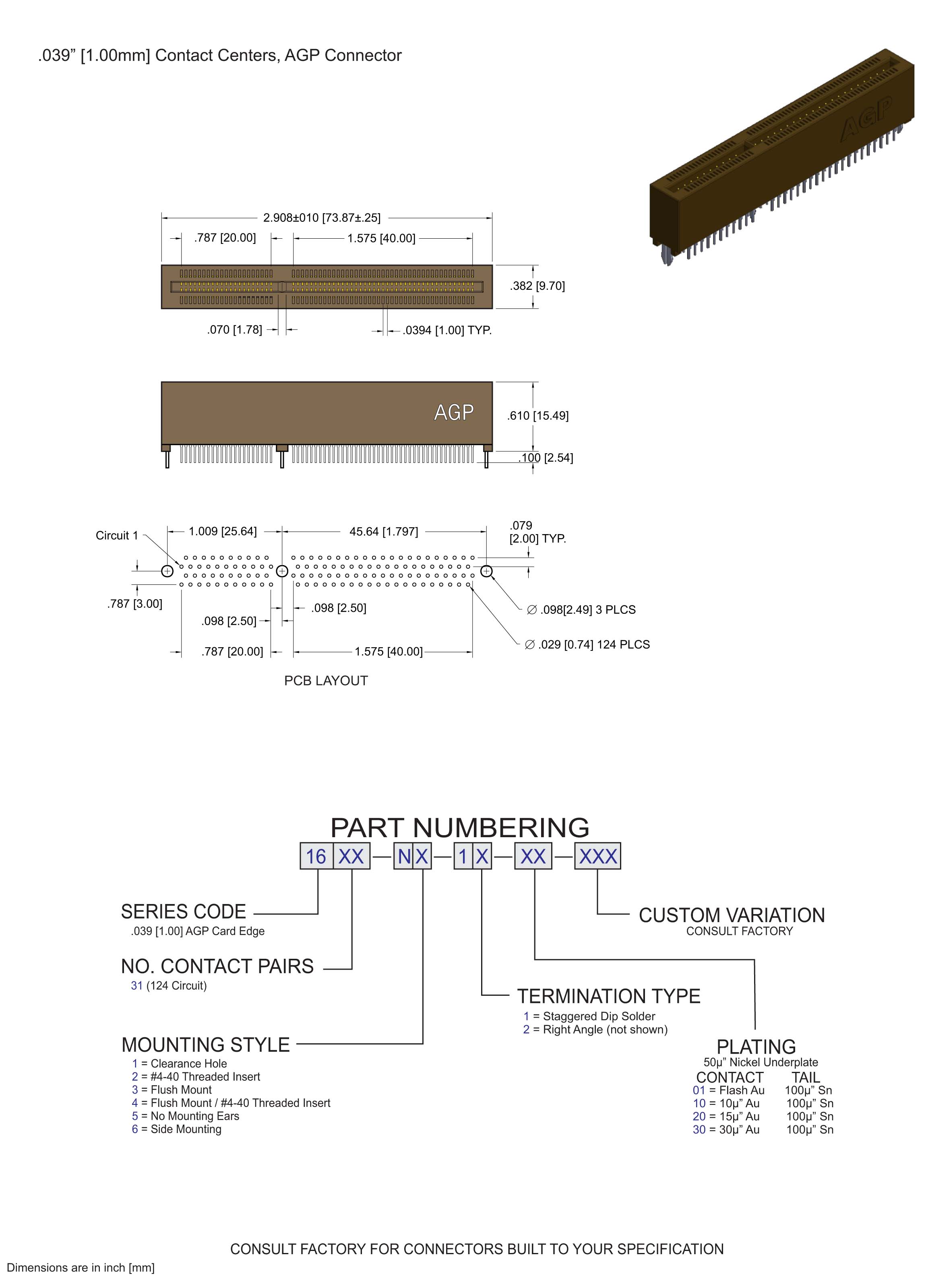

1600 Series AGP Card Edge Connectors .039[1.00] Contact Centers



1. Insulator Material: Glass filled PCT, 94 V-O Rated.

2. Contact Material: Copper Alloy

4. Current Rating: 1 amp Max

5. Voltage: 250 V AC

6. Insulation Resistance: 800 M min.

7. Dielectric Withstand Voltage: 400 V

8. Voltage Drop: 30m volt at rated current

9. Contact Resistance:

Contact to Daughter Card: 30 m max at rate current.

10. Board Insertion Force to PCB: 15 lbs. max.

11. Durability: 50 cycles

12. Temperature: -55 C to +125 C



  • Used with Accelerated Graphics Cards
  • Interconnect supports high performance
  • 3D graphics and full motion video.
  • Compatible with AGP 1X, 2X, and 4X
  • Metal fork lock PCB retention
  • Provides low card insertion force
  • SMT process compatible
