Specifications

Insulator Material: Glass filled polyester, Thermoplastic,
94-VO, UL Recognized.
Contact Material: Phosphor Bronze Alloy CA510
Contact Plating: Gold over 50μ” Nickel, and

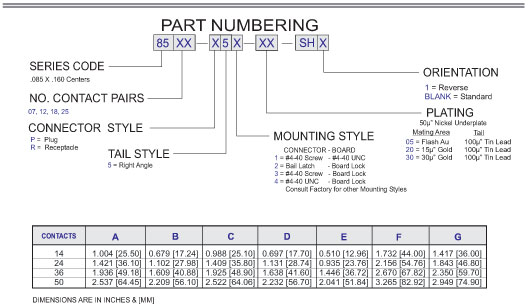

tin-lead (See part numbering for
thicknesses).
Contact Resistance:
20m ohms max. at 1 AMP DC.
Insulation Resistance:
1000M ohms at 500 V DC.
Dielectric Withstand Voltage:
1000 V AC/rms 60Hz for 1 min.
Current Rating:
3 AMP.
Voltage Rating:
250 V AC/rms at 60Hz.
Shell Plating:
Steel, 100μ” Tin over 50μ” min. Nickel.

Features

Available in selective gold plate at contact point

Many other custom options available,
consult factory
