   >7400 Series Futurebus 4 Row Shroud



Specifications


Insulator Material: Liquid Crystal Polymer (LCP)
94V-O, UL Recognized.
Insulation Resistance: 1000 M ohms min.
Dielectric Withstand Voltage: 1000 VAC
Operating Temperature: -65°C To +125°C
UL File Numbers: E146967 & E176234

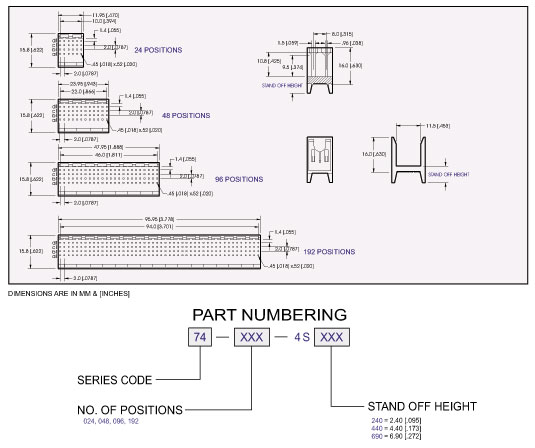

 7300 series futurebus shroud

  7300 series futurebus shroud












PDF File Download
