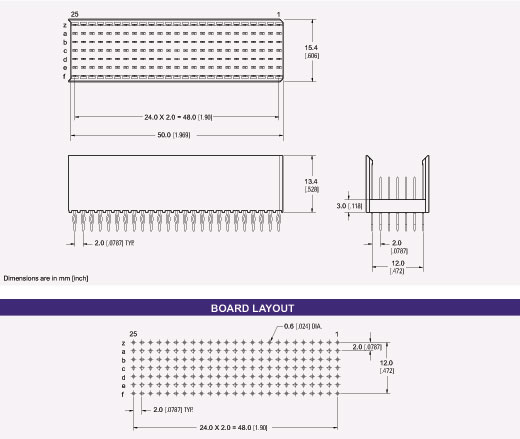

Type B-25, Vertical Male 125 Pin Connector

The type B-25 vertical male connector provides 125 signal contacts and an additional 50 ground shield contacts in a 5+2, 25 position configuration. This module is not designed Nto be used alone, but can be used together with either a type A, C, L, M or N connector.

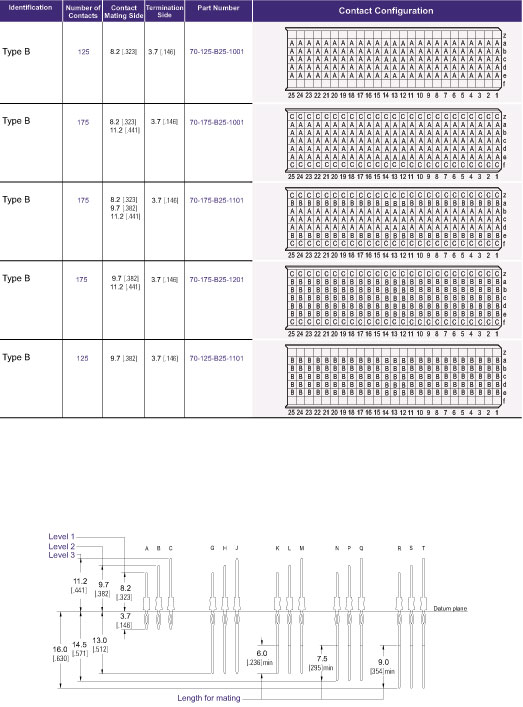

ECS offers 15 different standard tail lengths to choose from to provide various premate and midplane configurations. Contacts can be selectively loaded to accommodate customer specific applications. Custom tail lengths and mold configurations are also available. For non standard loading, or custom applications please refer to the fax request form on page D-35.
