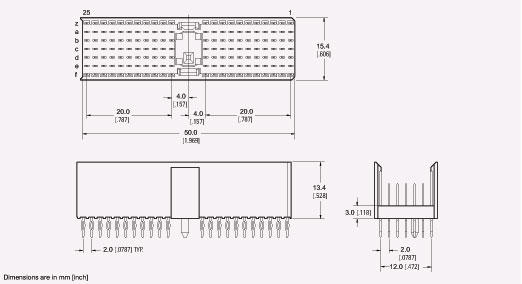

Type A-25, Vertical Male 110 Pin Connector

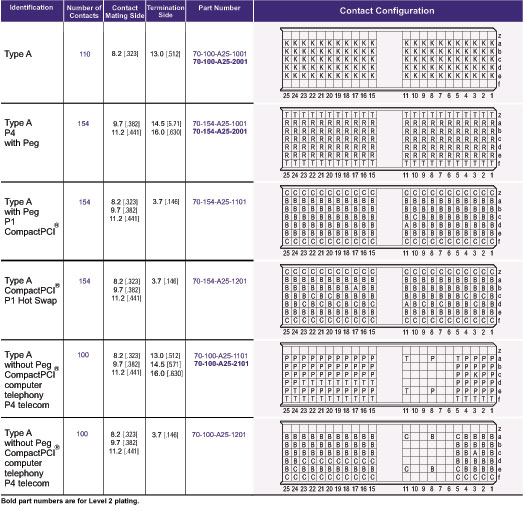

The type A-25 vertical male connector provides 110 signal contacts
and an optional 44-ground shield contacts in a 5+2, 25 position
configuration, with 3 positions for a multifunction cavity. This connector is typically used in the P1 and P4 positions of a CompactPCI backplane. The type A connector is designed to be used by itself or together with type B, C, L, M or N connectors.

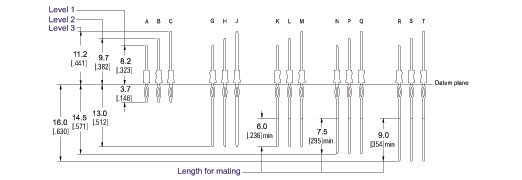

ECS offers 15 different standard tail lengths to choose from to
provide various premate and midplane configurations. Contacts can be selectively loaded to accommodate customer specific applications. Custom tail lengths and mold configurations are also available. For non standard loading, or custom applications please refer to the fax request form on page D-35.
