   > E-Z met™ 2mm Hard Metric Type N Receptacle, Right Angle



The Type N daughterboard connector provides 3
special cavities designed for us with power or coaxial contacts.
The Type N connector is not designed to be used by itself, but
can be combined with any Type A, B, L, or M connector.

For Coaxial, High Power, and High Current Contacts, see
pages C-40 through C-47.

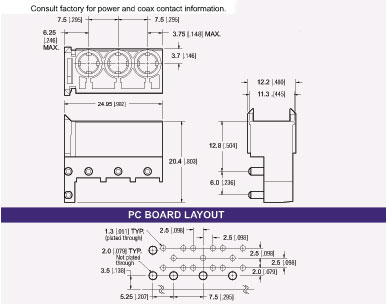

Type N Connector

  Type N Connector












PDF File Download
