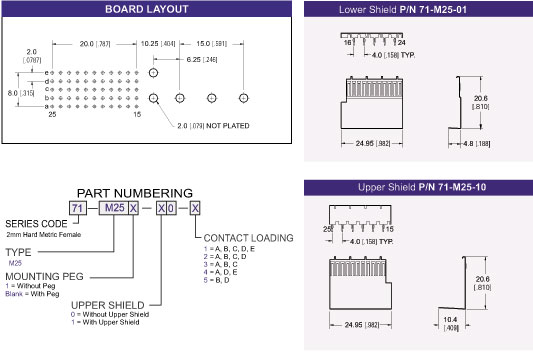

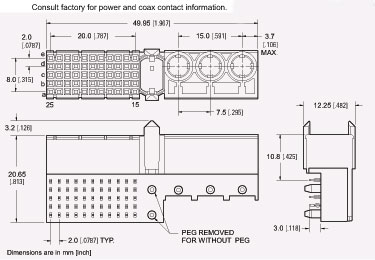

The Type M daughtercard connector provides 55 contacts
and three special cavities designed for use with power or coaxial
contacts. This connector also features a multifunction cavity for
coding and pre alignment guides to prevent improper mating.
These connectors are available either with or without integrated
upper ground return shields. Lower ground return shield may be
ordered separately.

For Coaxial, High Power, and High Current
Contacts, see pages C-40 through C-47.
