   > E-Z met™ 2mm Hard Metric Type B-19 Receptacle, Right Angle



The Type B-19 connector provides 95 contacts. These connectors
are available either with or without integrated upper ground return shields.
Lower ground return shields may be ordered separately.
The Type B-19 connector is used in the J3 position on the Compact PCI
daughtercard. This connector is not designed to be used alone, but may be
used together with either a Type A, C, L, M or N connector.



Type B-19 Hard Metric

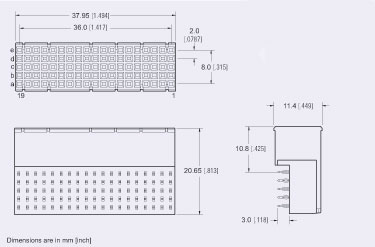

  Type B-19 Hard Metric

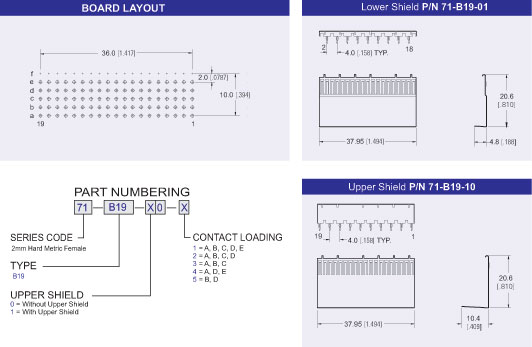

  Type B19 Hard Metric





PDF File Download
