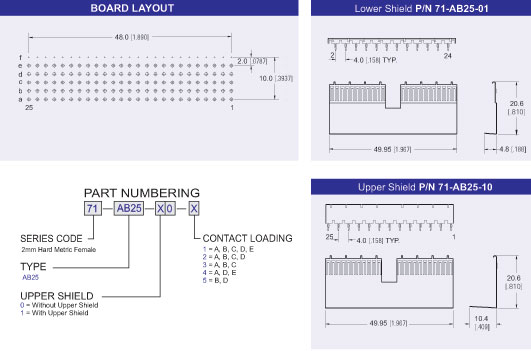

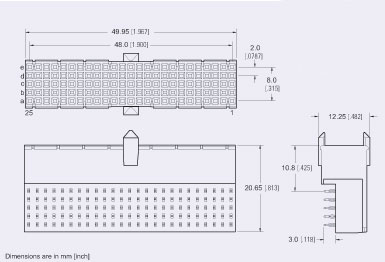

The Type AB-25 connector provides 125 contacts as well as
integrated pre-alignment guides. These connectors are available
either with or without integrated upper ground return shields.
Lower ground return shields may be ordered separately.
The Type AB-25 connector can be used by itself or in combination
with any Type A, B, C, L, M and N connector.
