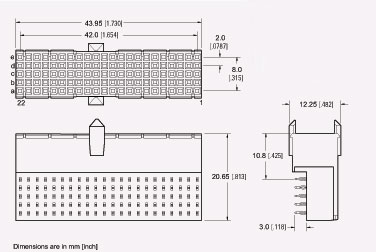

The Type AB-22 connector provides 110 contacts as well as
integrated pre-aligment guides. These connectors are available either

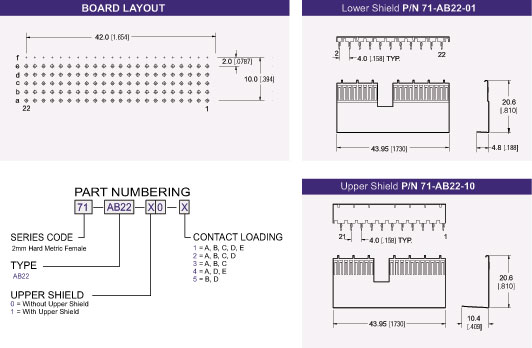

with or without integrated upper ground return shields. Lower ground
return shields may be ordered separately.
The Type AB-22 connector is used in the rJ2 and rJ3 positions on
Compact PCI Daughtercard. This connector can be used by itself or
in combination with any Type A, B, C, L, M and N connector.
