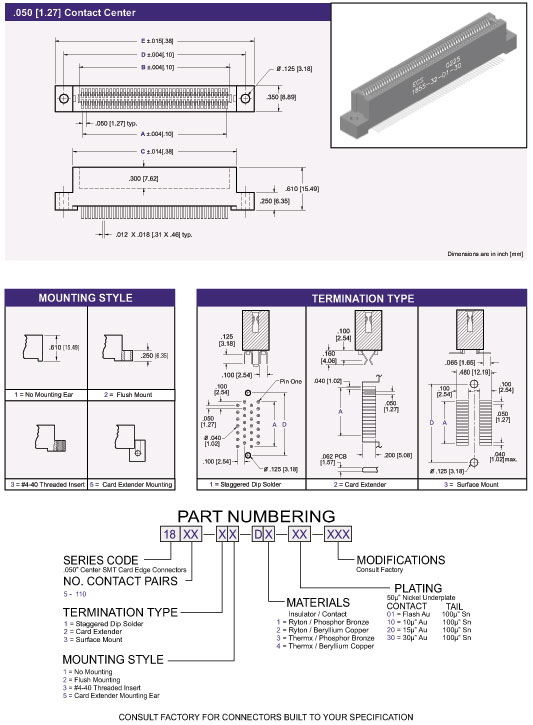

1800 Series Card Edge Connectors .050[1.27] Contact Centers

Accommodates .062 .008 PC Board
1 amp current rating
Insulation Resistance: 5000 M
Dielectric Withstand Voltage: 250 VDC
Voltage Drop: 30 m volt at rated current
Contact Resistance: 30 m max. at rated current
Board Insertion Force: 16 oz. Max. per contact pair using
.062 [1.58mm] thick steel test blade
Board Withdrawal Force: 1 oz. Min. per contact pair using
.062 [1.58mm] thick steel test blade.
Operating Temperature: -54 to 125 C

Pressfit 1500 series card edge

1700 Channel Architecture

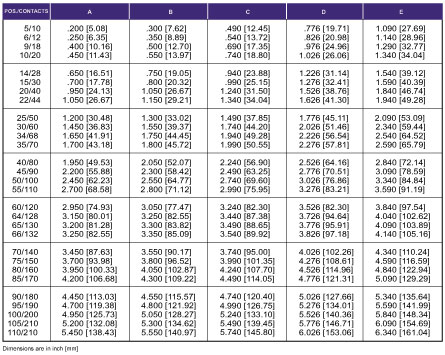

1800 Series Card Edge Connector Contact Centers

1800 Series Card Edge Connectors .050[1.27] Contact Centers
