Specifications

•Insulator Material: Glass-filled PCT, 94V-O Rated.
•Contact Material: Copper Alloy
•Current Rating: 1 Amp max.
•Voltage: 250 V AC
•Insulation Resistance: 800M min.
•Dielectric Withstand Voltage: 400 V
•Voltage Drop: 30m volt at rated current
•Contact Resistance: 30m max. at rate current
•Board Insertion Force to PCB: 15 lbs. max.
•Durability: 50 cycles
•Temperature: -55ºC to +125ºC

Features

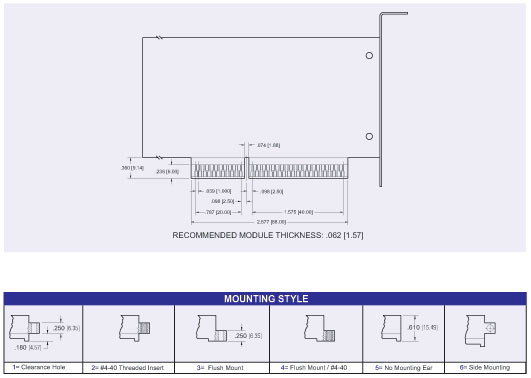

Used with Accelerated Graphics Cards
•Interconnect supports high performance
3D graphics and full motion video.

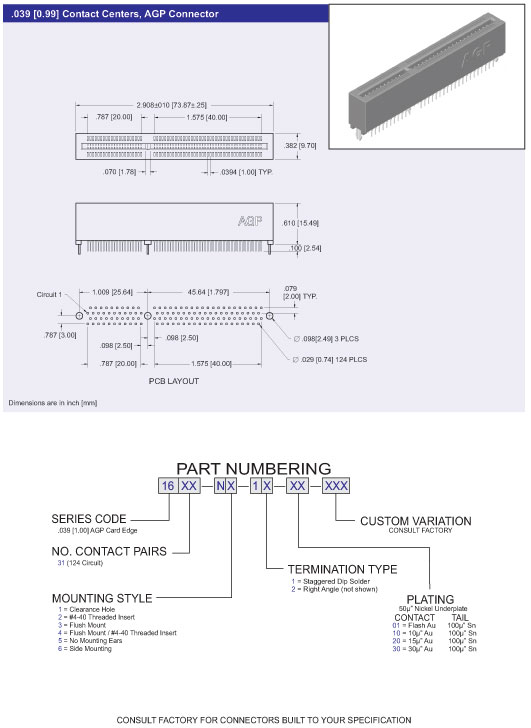

•Compatible with AGP 1X, 2X, and 4X
•Metal fork lock PCB retention
•Provides low card insertion force
•SMT process compatible
