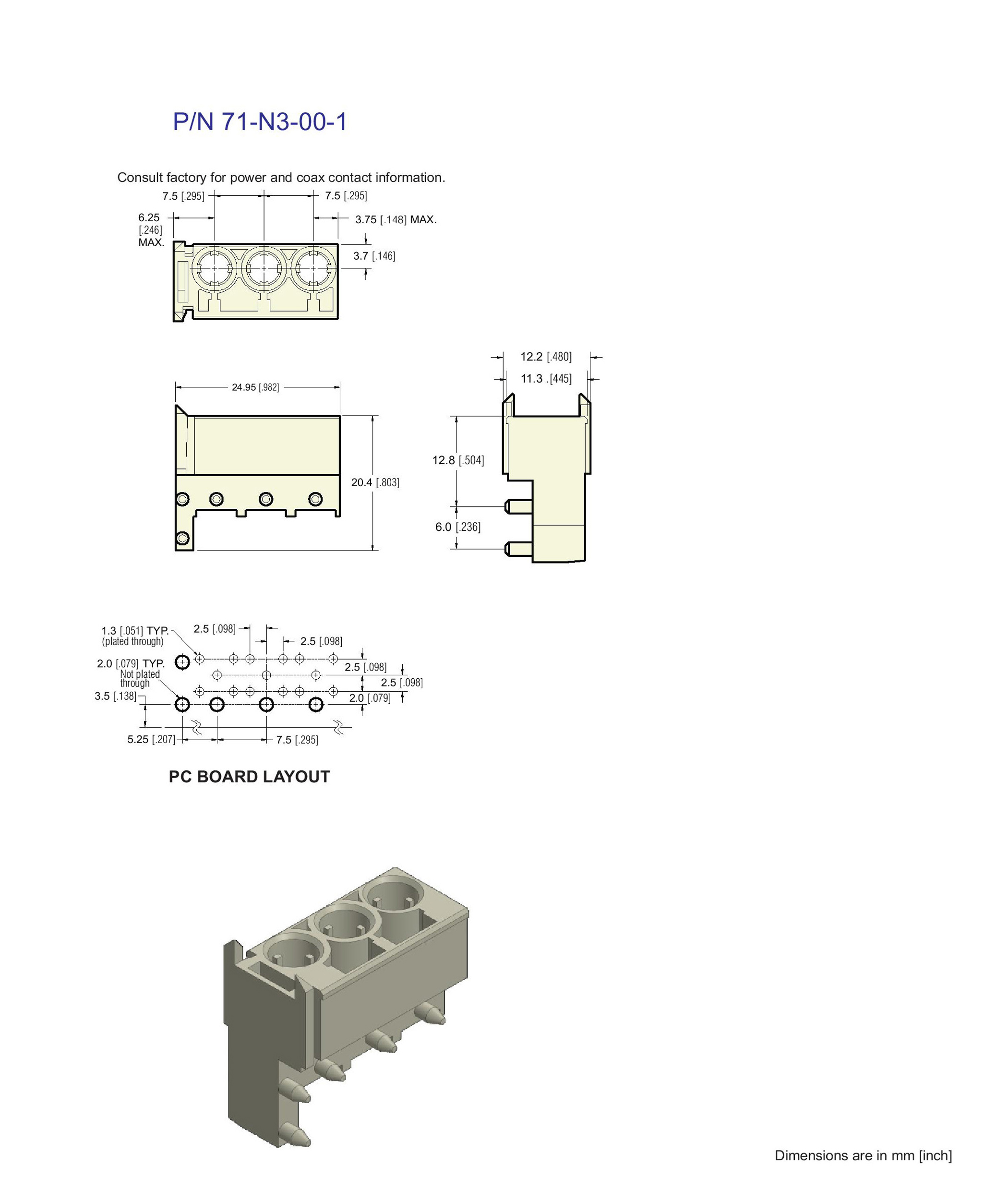

E-Z met™ 2mm Hard Metric Type N Receptacle, Right Angle

ECS Catalog PDF Files Download





The E-Z metf Type N daughterboard connector provides 3 special cavities designed for us with power or coaxial contacts. The Type N connector is not designed to be used by itself, but can be combined with any Type A, B, L, or M E-Z metf connector. For Coaxial, High Power, and High Current Contacts, Please click link below.



Coaxial, High Power, and High Current Contacts



SPECIFICATION

1. Insulator Material: PBT 30% Glass filled UL 94 V-O

15. IEC 61076-4-101 Standard
